BGU—Break Glass Unit
The BGU is used to override the Access control system which will release the maglock in case of an emergency exit. When the BGU is activated (Lift the cover and press in the middle of the BGU), the RED LED of the BGU turns to flashing red and beeps. This indicate the door is in an override mode and the maglock will be released.
To bring the BGU to normal state a special key is provided.
The BGU is always installed on the secure side of the door.

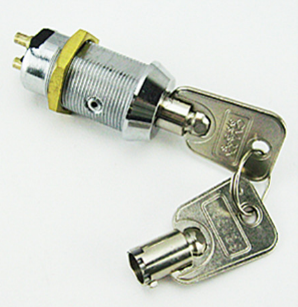

ORK—Override Key Switch
Override keys are special keys that can be used as follow:
To isolate power to the maglock, to allow access through a door.
To silence an activated siren on an emergency exit door,
To silence a DHO (Door Held Open) DFO (Door Forced Open) E.g. DC doors and MMR doors.
The door turns back to normal state.

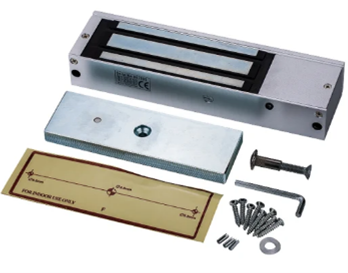

Maglock
The maglock is used to secure a door by electrically magnetising the unit.
The maglock has a build in contact to provide a door open or door closed trigger on the software associated to the installation.
When the electromagnet is energized, it attracts an armature plate, securing the door (maximum 3mm gap).
Maglocks require constant power to remain locked. They function using a fail-safe system,
where power ensures that the door stays locked.

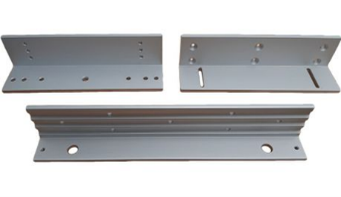

ZL Bracket
The ZL bracket is used to install a Maglock to the secure side of a door if the door opens to the secure side as this is important if the maglock is on the unsecure side, it creates a potential for a security breech.
This could be installed in various positions.
Custom options are also available.

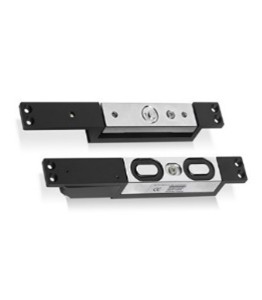

Electronic Shear-Lock
The Shear-Lock has a built-in micro controller with door open delay time and door position detection outputs. Suitable for all types of 90 degrees to 180 degrees open aluminium or wooden doors.
Accuracy is very important on this lock installation this is less than +/-3mm
It has a maximum shear force of 1,200kg and maximum magnetic action up to 5mm.
Pinlock (Bolt lock)
The Pinlock (Bolt Lock) is installed on sliding doors (Cages). Pinlock (Bolt Locks) are installed from single sliding door to multiple sliding doors. Pinlocks arelocked or unlocked with the assistance of an electrical current. The electrical current is either used to power an electromagnet, a solenoid electromagnet with a single coil.
NB in the event of no power these pinlocks will disengage and the doors will be free to open.
EL 560 Mortise lock
The EL 560 Lock Mortise lock are installed on high security doors like DC, DC security offices and client offices on request. Installation of this lock must always be referred to the manual and wiring diagram as the colour coding of cables may differ. When the door closes, the lock engages automatically – the dead bolt throws out and the latch bolt is locked (Refer to manual). When access is granted the controlled handle or panic handle is down, the dead bolt is withdrawn inside the lock case and the latch bolt is released concurrently.
NB this lock is also used with an ORK and manual lock key.
Electric Striker Lock
This image is for an example only.
An electric strike lock is a type of locking device that is used in conjunction with an existing/ standard door lock. When the door is opened, the strike plate is retracted, allowing the door to be opened.
When the door is closed, the strike plate extends, preventing the door from being opened. Electric strike locks can be used on both inward and outward swinging doors. They are available in a variety of sizes. Mechanical override available.
Siren
The siren is used to activate when there is a breech in security.
Example would be when an emergency exit door is opened the siren will sound and alert the security or if a door is open for too long.
Isolator Monitor(Power Monitor)
The Power Monitor (Isolator Monitor) is connected to 220v that is supplied to the PSU. If the 220v power supply drops the Power Monitor (Isolator Monitor) will change state and indicate that there is no 220v to the system.
HBUS Door Module 4in 2out
The HBUS 4 In 2 Out, Door Module – Wiegand by Gallagher is designed to enhance the connectivity of the Gallagher Controller 6000 using the HBUS communications protocol. Let’s break down how it works:
Inputs and Outputs: The module provides connections for: 2 Wiegand Readers: These are used for access control, allowing users to present credentials (such as cards or fobs) to gain entry. 4 Inputs: These can be used for various purposes, such as monitoring door status (open/closed), detecting tampering, or integrating with other systems (e.g., fire alarms). 2 Outputs: These outputs can trigger actions, such as unlocking the door, activating an alarm, or controlling external devices (e.g., lights or sirens).
Functionality:
When a user presents their access credential (e.g., swipes a card), the Wiegand reader sends the credential data to the Gallagher Controller 6000. The controller processes this information and determines whether access should be granted. If access is granted, the controller activates the appropriate output (e.g., unlocking the door). Inputs can also be configured to trigger specific actions. For example, an input connected to a fire alarm system could cause the door to unlock during an emergency.
Integration:
The module seamlessly integrates with the Gallagher security ecosystem, allowing for centralized management and monitoring. It ensures secure communication between the controller and connected devices. In summary, the HBUS 4 In 2 Out, Door Module – Wiegand facilitates access control by handling reader inputs, monitoring door status, and controlling outputs based on predefined rules. It’s a crucial component for secure and efficient building access management.
HBUSS Controller 6000
The Controller 6000 uses straight forward system architecture to provide powerful and flexible configuration. It has the ability to enforce business rules, monitor its environment, communicate with other integrated systems and make offline access decisions.
HBUSS Expansion Board 8 Ports
The Expansion Board 8 Ports is used to add HBUSS device to the Controller 6000 this board allows you to add 8 HBUSS devices to the Controller.

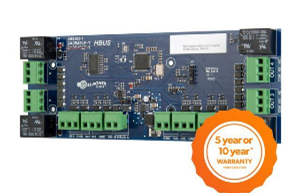

HBUSS 8in 4out door module
The HBUSS 8in 4out is generally used to connect an Emergency Exit door and also are used on a cage with multiple locks. The Gallagher 8 In 4 Out, Door Module: Connects reader or terminal devices up to 400m (1312ft.) away allowing HBUS communications to be branched or ‘T’ Wired from HBUS cabling connected to the Controller 6000 Provides isolation between its upstream and downstream HBUS runs protecting other HBUS Devices connected to the same controller HBUS port

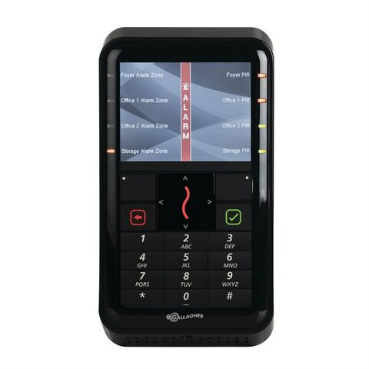

T20 Gallagher Reader
The T20 Gallagher Reader are generally installed on site with a Morpho Reader on gages as clients will require a pin on access granted. Features and benefits Large and durable keypad A 3.5” LED display for user feedback IP66 dust and water ingress protection Supports optional alarms management functions. Ensure awareness of any attempted tampering with an integrated rear tamper. Display company logo’s, promotional imagery, and messaging, customized exit and entry access denied/granted messages, and enforce cardholder competencies through message display. Fully configurable Mimic Panel reflecting the status of up to 8 inputs, outputs, or alarm zones. High grade authentication (256-bit ECC) and encryption (128-bit AES*) between the readers and Controller 6000. Prevent bystander PIN disclosure at keypad with Cipher Pad functionality.
Sigma Lite Morpho Reader
Morpho Readers is designed for access control and time attendance.
Biometric Identification: The terminal performs access right checks using biometric identification. It can handle both one-to-many and one-to-one biometric matching. When a user approaches the terminal, it captures their fingerprint and compares it against a database of stored fingerprints to determine if there’s a match.
RF Card Authentication: In addition to biometrics, the terminal supports contactless card authentication. Users can present an RFID card (such as an access card or employee badge) to gain access. The terminal verifies the card’s credentials against its database. Ergonomic Interface: The terminal features a simple and ergonomic user interface. It’s designed for ease of use, making it suitable for various access control scenarios. Status LED: The terminal includes a status LED that provides visual feedback to users. For example, it might indicate whether access is granted or denied.
Wiring and Communication: The terminal can be connected via Network and Wiegand. It communicates with the central access control system to process access requests.
Optional Features: Depending on the specific model, the terminal may offer additional features such as USB ports, and more.
Sigma Dual Authentication Reader
The Morpho Access SIGMA Lite Series is a versatile solution for secure access control, combining biometrics, card authentication.
Reader Harness, Connecting to Reader
Wiegand Cables are used
Reader Harness
Wiegand Cables are used.
Diode 4007
It acts as a one-way switch that allows the current to flow in one direction and halts in the other direction. 1N4007 belongs to the silicon family of1N400X series. It is a general-purpose rectifying diode that serves its purpose of converting alternating current signals (AC) to direct current signals (DC) in electronic products.

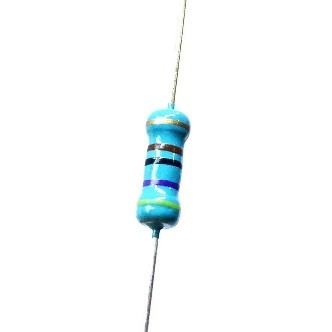

Resister 4K7
A resistor’s primary purpose is to limit the flow of electric current in a circuit. It does this by providing resistance. The resistance value is measured in ohms (Ω). In the case of a 4.7k ohm resistor, the value is 4,700 ohms. Colour Code: The colour bands on the resistor indicates its value. Let’s decipher the colour code for a 4.7k ohm resistor: Yellow (1st band) represents the first digit, which is 4. Violet (2nd band) represents the second digit, which is 7. Red (3rd band) acts as the multiplier, indicating a factor of 100. The gold band (4th band) specifies the tolerance, which is ±5%. In summary, a 4.7k ohm resistor helps regulate current flow in electronic circuits, ensuring stable operation of devices.

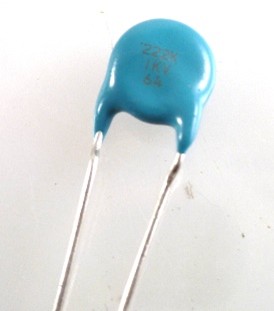

Metal Oxide Varistor (MOV)
It contains a ceramic mass of zinc oxide grains sandwiched between two metal plates. When the voltage across the MOV is below the ‘clamping voltage’ or ‘varistor voltage’, it behaves as a high-resistance component. If the voltage increases, the resistance decreases, making it useful for protecting circuits from high voltage spikes.

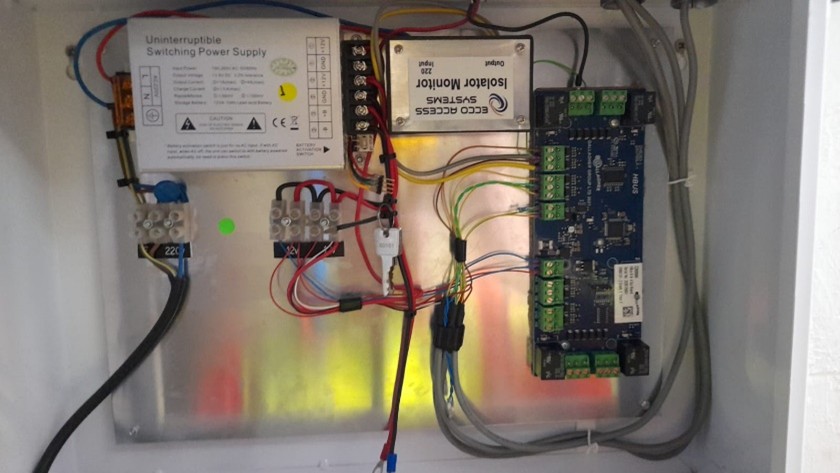

Power Supply connection with HBUSS 8in 4out Door Module

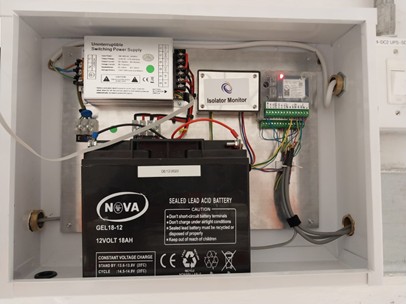

Power Supply connection with HBUSS 4in 2out Door Module
Always use provided Wiring Diagram provided to each Access Control Technician by ENZA Procurement when installing or maintaining of systems.
